SUP-MP Ultrasonic Level Transmitter

The SUP-MP ultrasonic level transmitter is a versatile level measurement configured with a digitalized and customized design, which offers perfect functions including level monitoring, data transmission, and man-machine communications for most solid and liquid surface measuring.

It has been widely used in sorts of industries like chemical, mining, aggregate, power generation, pulp and paper, iron and steel, waste water, food and beverage, and quarries.

Characteristics

  • Measure range: 0 ~ 10m（Non-explosive fluids）
  • Blind zone: 0.35m
  • Accuracy: 0.5%F.S
  • Power supply:  (18~28) VDC
  • Communication: Isolated RS-485 Modbus-RTU Communication Protocol

  • Specifications

 Product Ultrasonic level transmitter
 ModelSUP-MP
 Measure range
0~5M/ 0~10M/ 0~15M/ 0~20M/ 0~30M
 Blind zone0.35m
 Accuracy
±0.5% FS (optional ± 0.2% FS)
 Display2-inch black and white LCD with 128*64 resolution
 Output (optional)4-20mA RL＜500Ω
RS485
2 relays
 Measuring variableLevel/Distance
 Power supply14~28VDC
85~305VAC，5W Max，50/60Hz (optional)
 Power consumption<1.5W
 Protection degreeIP65(others optional)

  • Features

       Extremely accurate measuring and reading ability

       Available for data backup and recovery

       Free adjustment of the range of the analog output

       Custom serial port data format

       Optional increment/difference distance measurement to measure air space or liquid level

       1-15 transmitted pulse intensity based on working environments

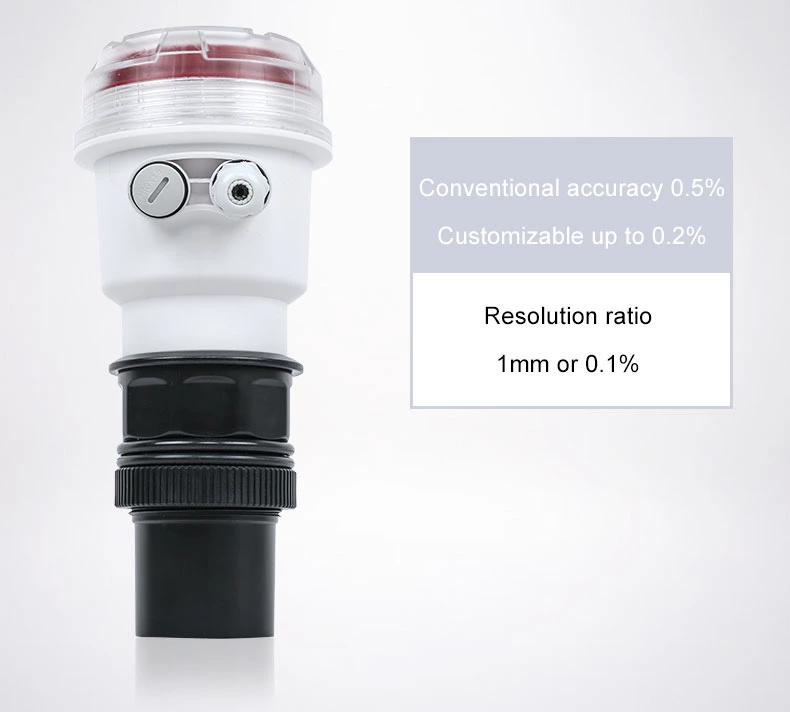

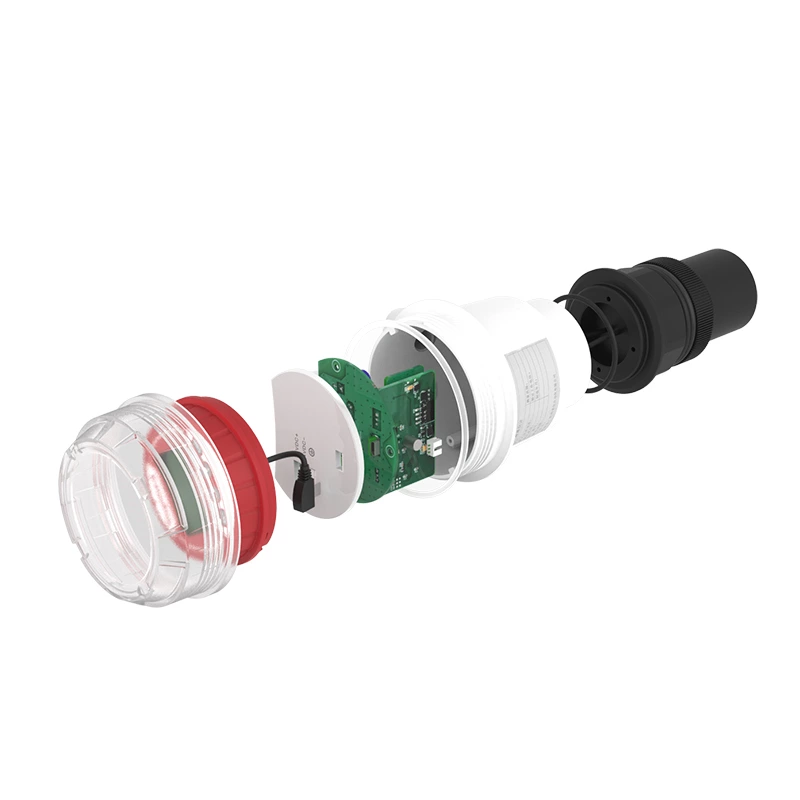

  • Product Display
