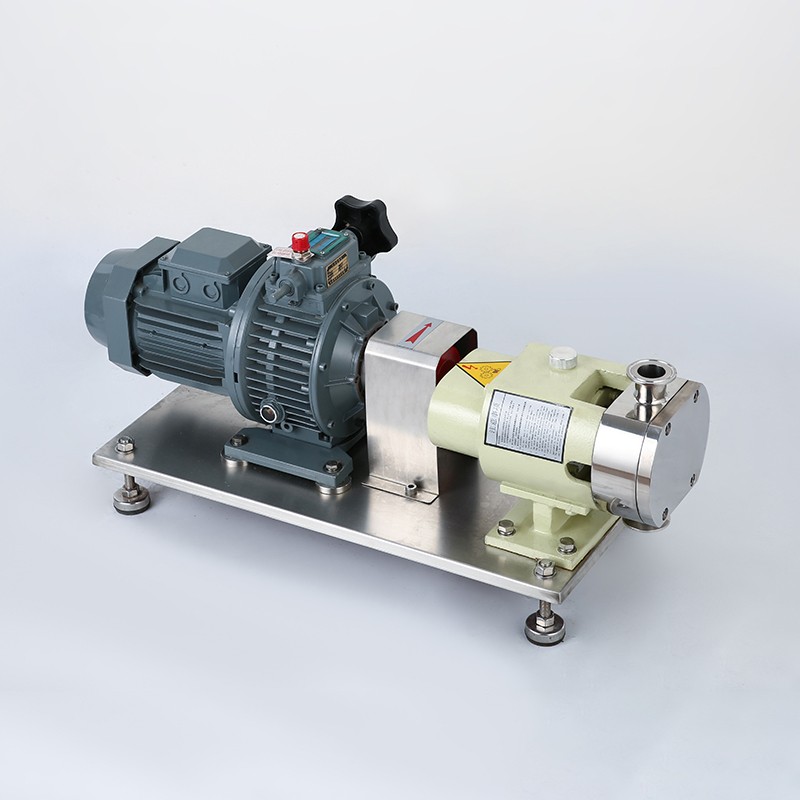

Sanitary Rotary Pump

Sanitary Rotary Pump

• Maximum flow: 90 m3/H
• Maximum pressure: 20 bar
• Maximum temperature: 150℃
• Maximum speed: 750 RPM
• Material: 304/316L
• Inner surface: Ra 0.8 m
• Certification: 3-A-02-11 No.1579; CE – MD / 06-42; 177.2600 the FDA.
• Import and export connection: 1) horizontal TUL 2) vertical TUR
• Butterfly rotor (standard); Five-leaves rotor; Three-leaves rotor; Two-leaves rotor; Single butterfly rotor
• Machine seal: Single end face machine seal (standard)， double end face machine seal (optional)， Material SIC/SIC,TC/TC
