Water Treatment Supplies

Pro-S Water filtration is one of the fastest growing company.
We are providing water filtration solutions and services throughout the country.
The motive of our company is to provide the fresh and healthy water with
Cost effective and Energy-efficient methods.

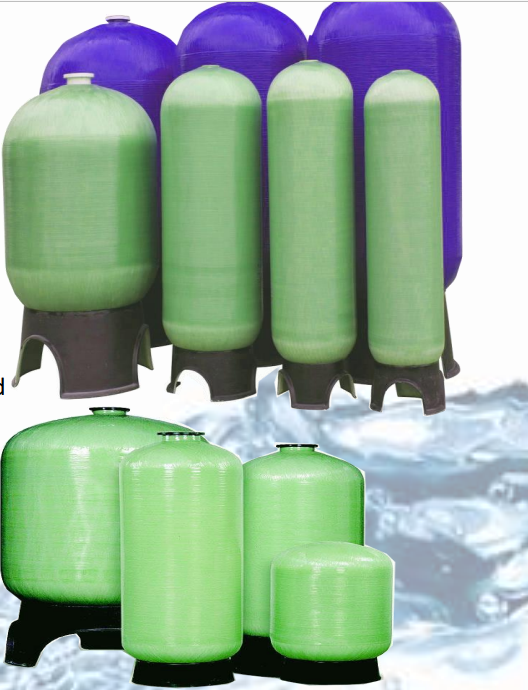

Features:
  • Nominal Working pressure: 100 psi
  • Maximum Working pressure: 150 psi
  • Burst pressure: 600 psi
  • High temperature resistance (200⁰F)
  • Material: FRP
  • High strength
  • High chemical resistance
  • Abrasion resistance
  • Light weight
  • Excellent dimensional stability
  • No chance of rust in the tank
  • Available colours: Black, Natural, Blue, Grey and Green
APPLICATIONS:
  • Suitable for low pressure applications
  • Pharmaceutical Industry
  • Food and drink Industry
  • Cosmetics Industry
  • Petrochemical Industry
  • Drinking water purification

Model Dimension(Inches) Volume(Litres) Media Volume(Litres) Service Flow (Gpm) Back wash flow (Gpm)
S/C/MM/12 12×48 79 55 8 16
S/C/MM/14 14×65 150 105 11 22
S/C/MM/16 16×65 182 127 14 28
S/C/MM/24 24×72 415 290 31 60
S/C/MM/24 24×72 415 290 31 60
S/C/MM/30 30×72 640 448 49 98
S/C/MM/30 30×72 640 448 49 98
S/C/MM/36 36×72 850 595 71 140
S/C/MM/42 42×72 1100 770 96 190
S/C/MM/48 48×82 1909 1336 126 250
BENEFITS:
  • Remove silt, rust, dust, particles, scale and other sediments
  • Large contact surface for minimum pressure drop
  • High retention capacity
  • High filtering efficiency

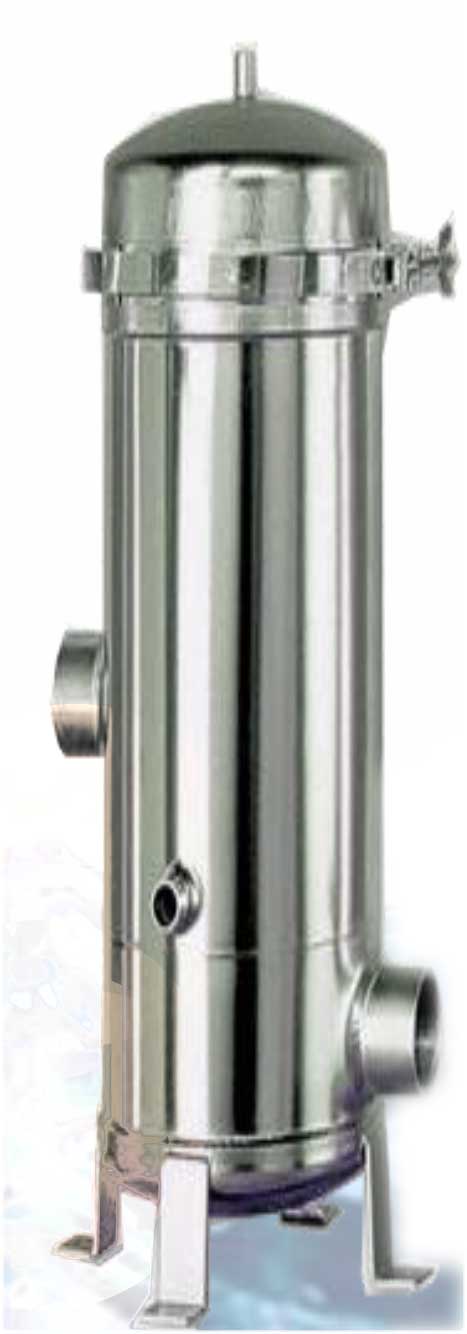

Model Size Number of Cartridges Cartridge type Flowrate(GPM)
MCH-7 10’’ 7 Slim 30
MCH-14 20’’ 7 Slim 60
MCH-21 30’’ 7 Slim 90
MCH-28 40’’ 7 Slim 120

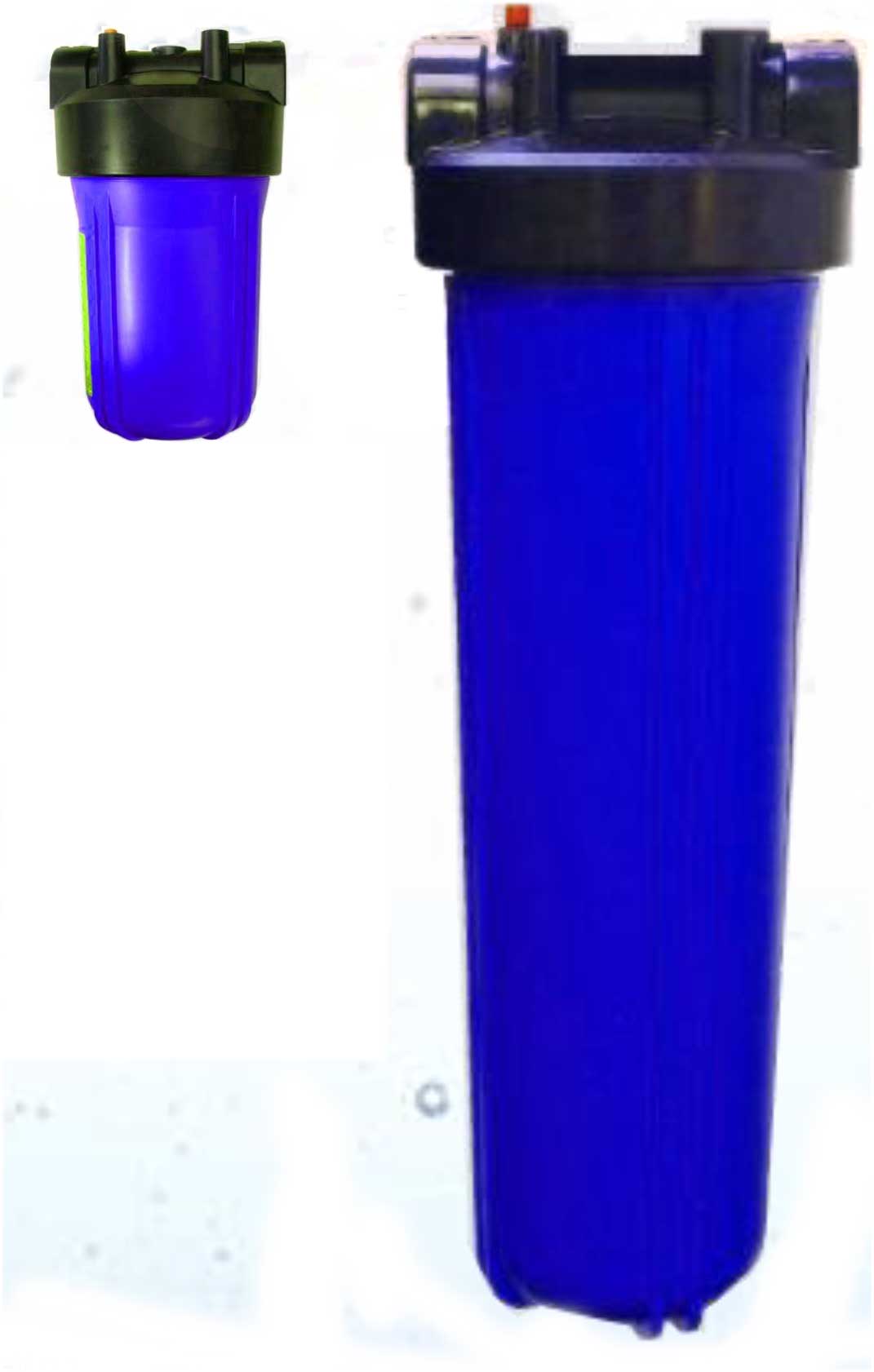

JUMBO/SLIM CARTRIDGE HOUSINGS

FEATURES:
  • Material: Fibre reinforced polypropylene
  • Housing type: Slim/ Jumbo
  • Max Operating temperature: 60⁰C
  • Max Operating pressure: 100 psi
  • Air vent: Available
Model Size Number of Cartridges Cartridge type Flowrate(GPM)
JCH-10 10’’ Single Jumbo 30
JCH-20 20’’ Single Jumbo 50
SCH-10 10’’ Single Slim 25
SCH-20 20’’ Single Slim 40

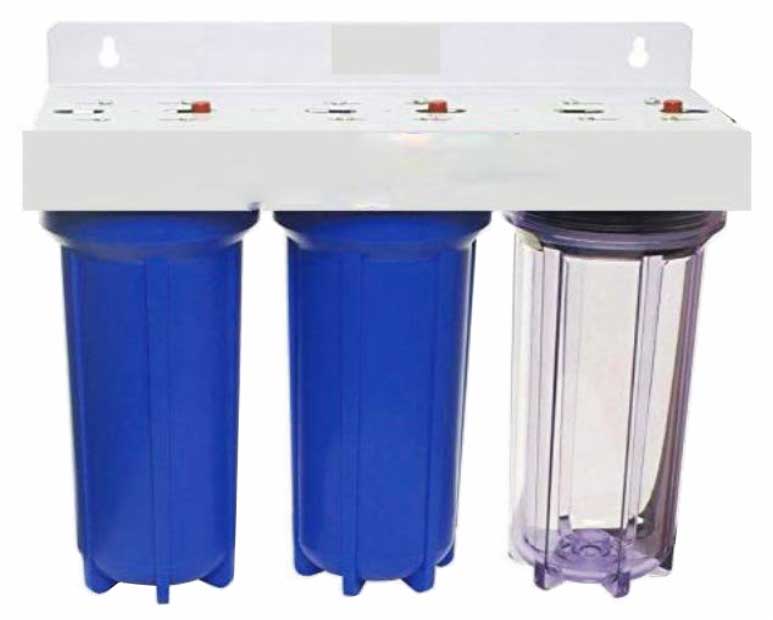

FEATURES:
  • Use for drinking water purpose
  • Stage 1: Polypropylene yarn filter removes dust, silt and other particles
  • Stage 2: GAC filter removes odours and bad taste.
  • Stage 3: UV lamp kills pathogenic organisms
  • Material: Polypropylene
Model Size Stages Cartridge type Supply to UV
TWFJ-10 10’’ 3 Jumbo 220V, 50Hz
TWFJ-20 20’’ 3 Jumbo 220V, 50Hz
TWFS-10 10’’ 3 Slim 220V, 50Hz
TWFS-20 20’’ 3 Slim 220V, 50Hz

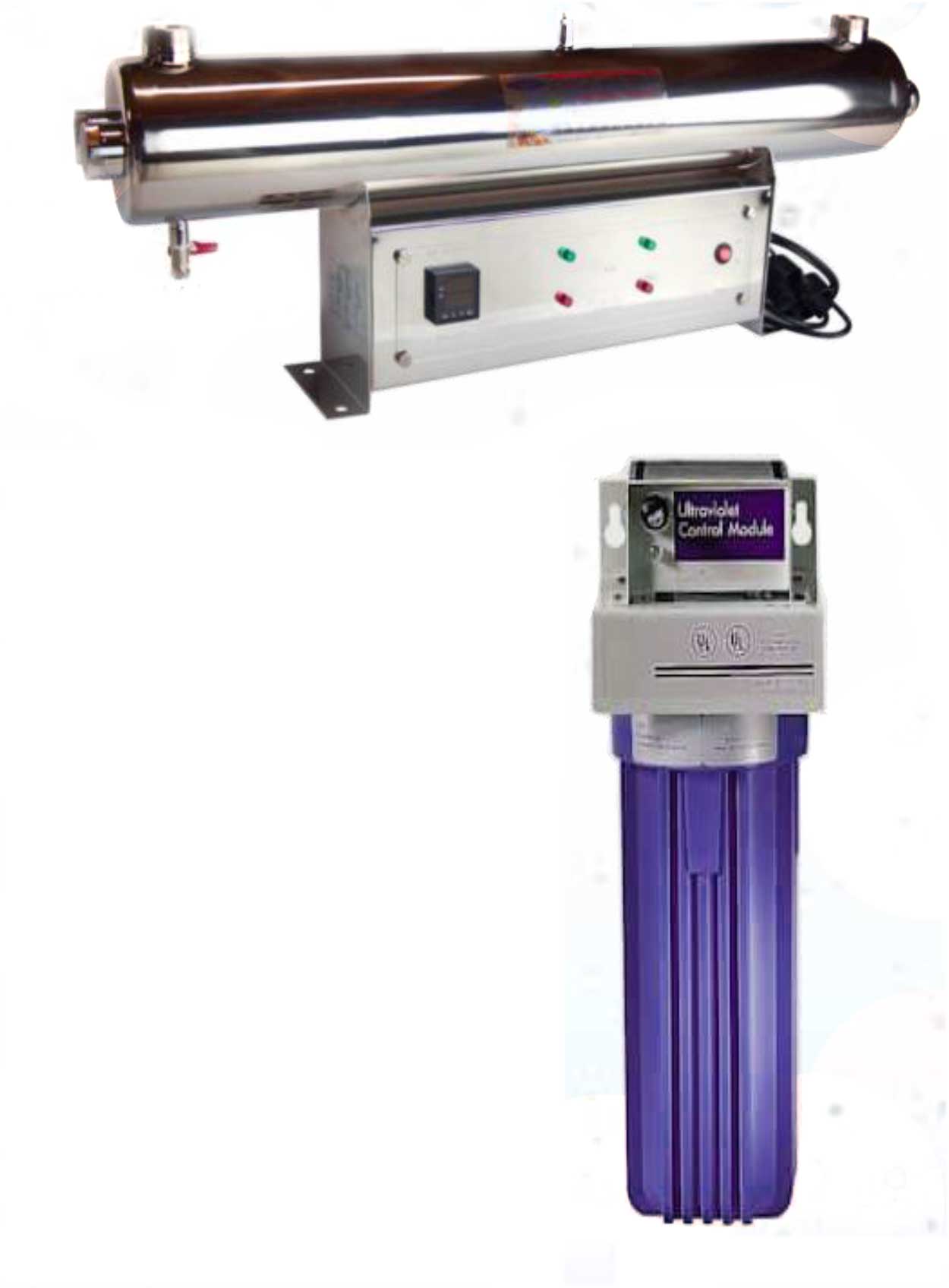

ULTRAVIOLET STERILIZERS FOR WATER

BENEFITS:
  • Remove pathogenic organisms
  • No use of chlorine during the process
  • Polished and passivated SS 316L material
  • Easy to change caps provided for replacement of UV lamps
  • 99.99% sterilization
  • No change of taste and quality of water
  • Optimized design for low maintenance
  • Lamps protected against fused Quartz sleeve
  • Lamp life: 10000 hours
  • Wave length: 254nm
Model Power Consumption(Watts) Inlet (NPT) Outlet (NPT) Flowrate(GPM)
UV-12 36 1’’ 1’’ 12
UV-24 72 1’’ 1’’ 24
UV-36 108 1’’ 1’’ 36
UV-48 144 1’’ 1’’ 48

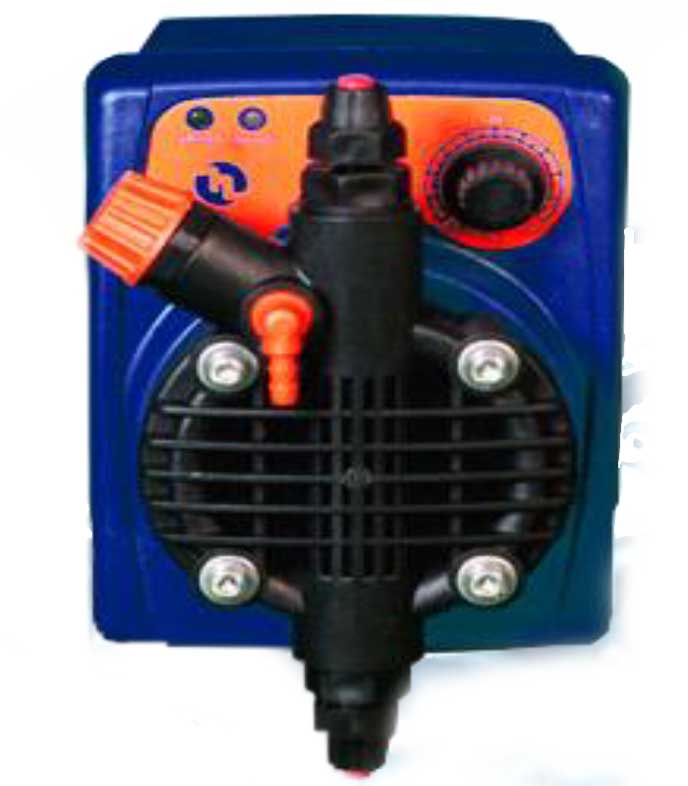

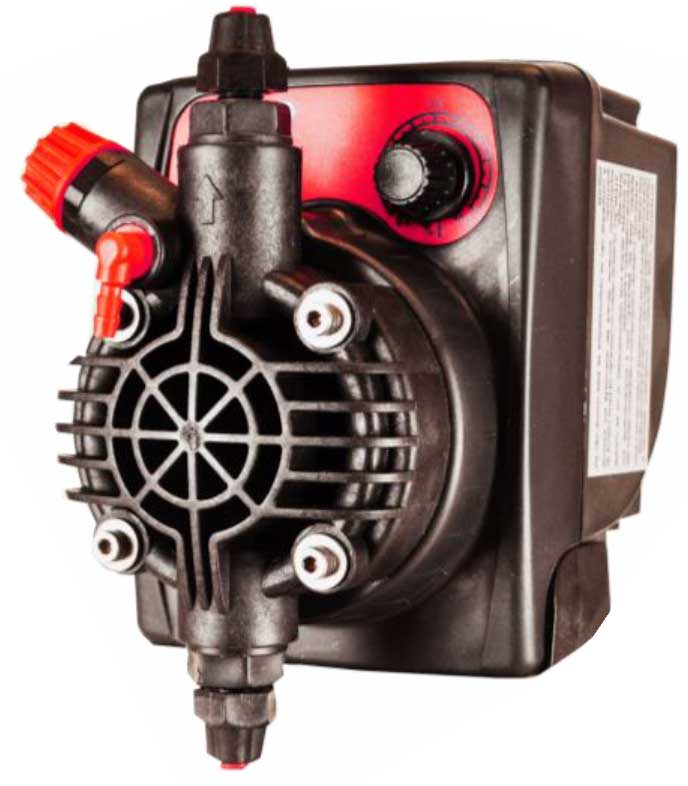

ETATRON PKX MA/A, PKX FT/A (ITALY):
  • Pressure head: 6 bar
  • Moderate flowrate applications
  • Anti-acid enclosure (IP65)
  • Reduced dimensions
  • Flashing LED showing pump stroke frequency
  • IP65 On/Off Switch
  • Manual air bleed polypropylene head
  • Control panel protection assured by an adhesive polyester film
  • Maintenance free (Pump does not need any lubrication)
  • 120 stroke/min
  • PKX FT/A works on pulses received from incoming free tension contacts
  • PKX MA/A works on strokes set by knob.

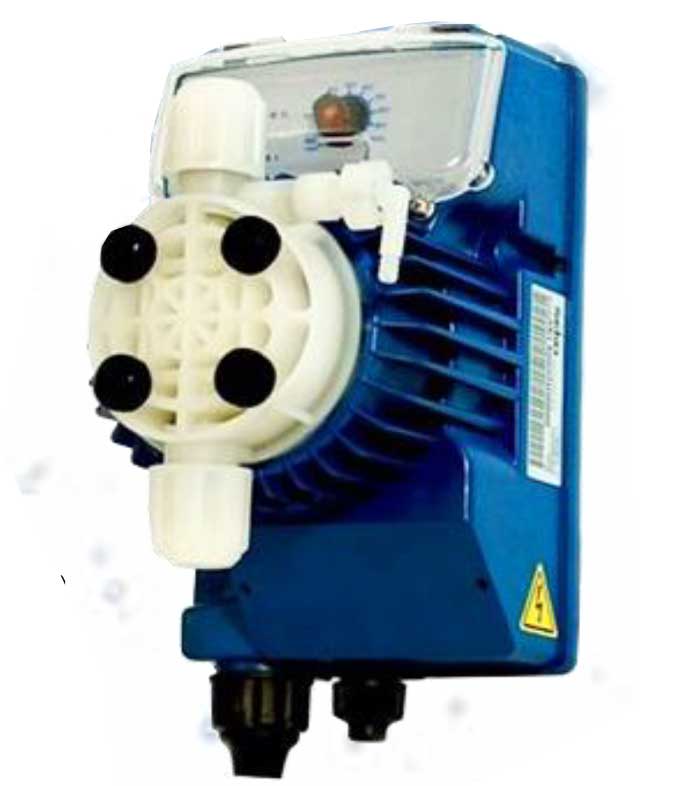

SEKO TEKNA AKS (SINGAPORE):
  • Flow rates: from 0.4 to 110 l/h
  • Max back pressure: up to 20 bar
  • Power supply: 100 – 240 Vac – 50/60 Hz
  • Stroke rate: from 120 to 300 strokes/minute
  • Pump head: PVDF
  • Diaphragm: PTFE
  • External Enclosure: PP reinforced with fiber glass protection degree IP65
  • Manually priming valve
  • Installation kit: Included

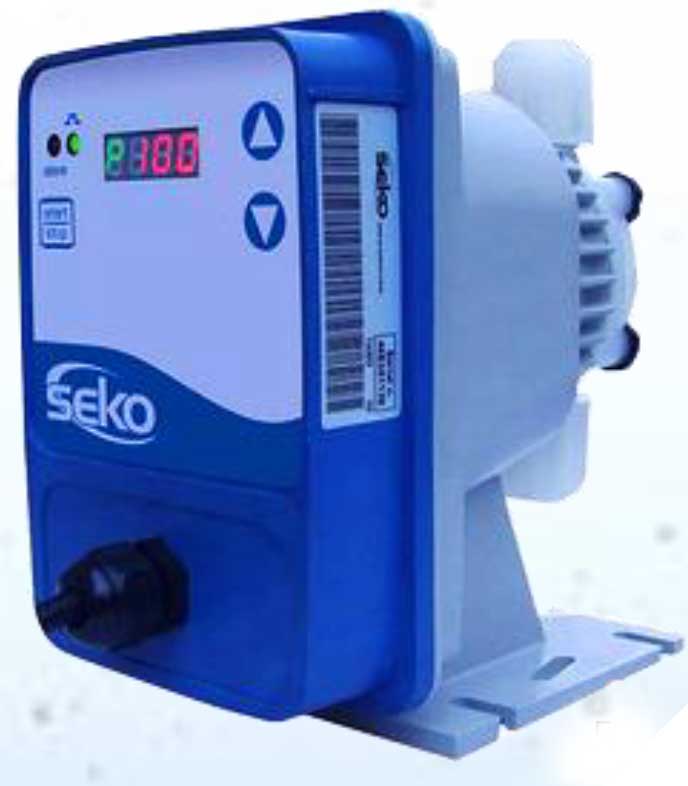

SEKO KOMPACT SERIES (SINGAPORE):
  • Adjustable constant and proportional flow rates to suit application.
  • Password protection for added security (digital models)
  • Programmable timer for regular dosing
  • Multi-color LED status system simplifies pump monitoring.
  • Level control input ensures pump will not run dry.
  • Flow rate: up to 5 l/h
  • Pressure: up to 10 bar (145 psi)
  • Stroke rate: up to 160 strokes/minute
  • Wetted part materials: PVDF-T, PTFE, EPDM, FPM and ceramic
  • Power supply: 100–240 VAC 50/60 Hz
  • Ingress protection: IP65

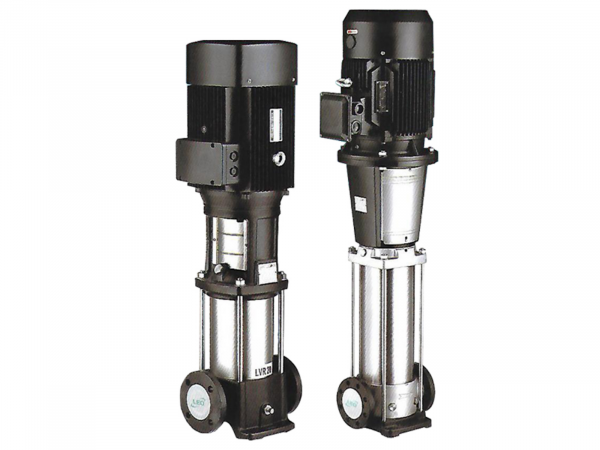

LVS/LVR (VERTICAL MULTISTAGE)

Operating Conditions:
  • Liquid temperature: -20⁰C to +120 ⁰C
  • Flow ranges: 0.7-120m3/hr
  • Liquid pH value: 4-10
  • Max. ambient temperature: +40 ⁰C
  • Max. Operation temperature: 33 bar
  • Altitude: up to 1000m
  • Medium: Low viscosity, non-flammable and non-explosive liquids

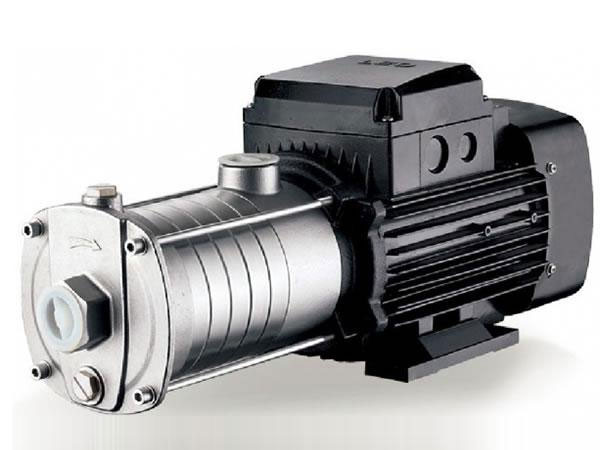

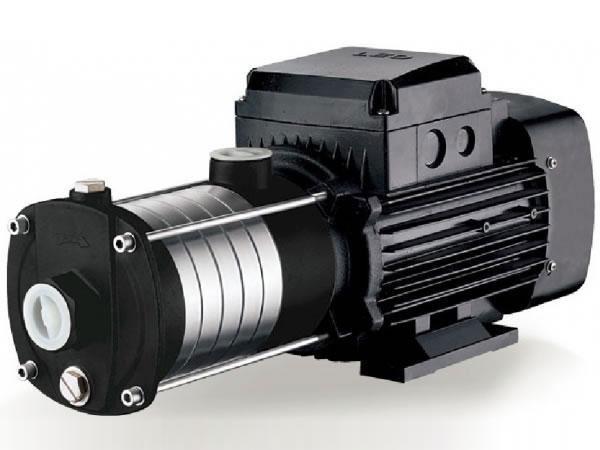

ECH/ECHS (HORIZONTAL MULTISTAGE)

Operating Conditions:
  • Liquid temperature: +85⁰C
  • Flow ranges: 2-20m3/hr
  • Liquid pH value: 4-10
  • Max. ambient temperature: +40 ⁰C
  • Max. Operation temperature: 10 bar
  • Altitude: up to 1000m
  • Medium: Low viscosity, non-flammable and non-explosive liquids

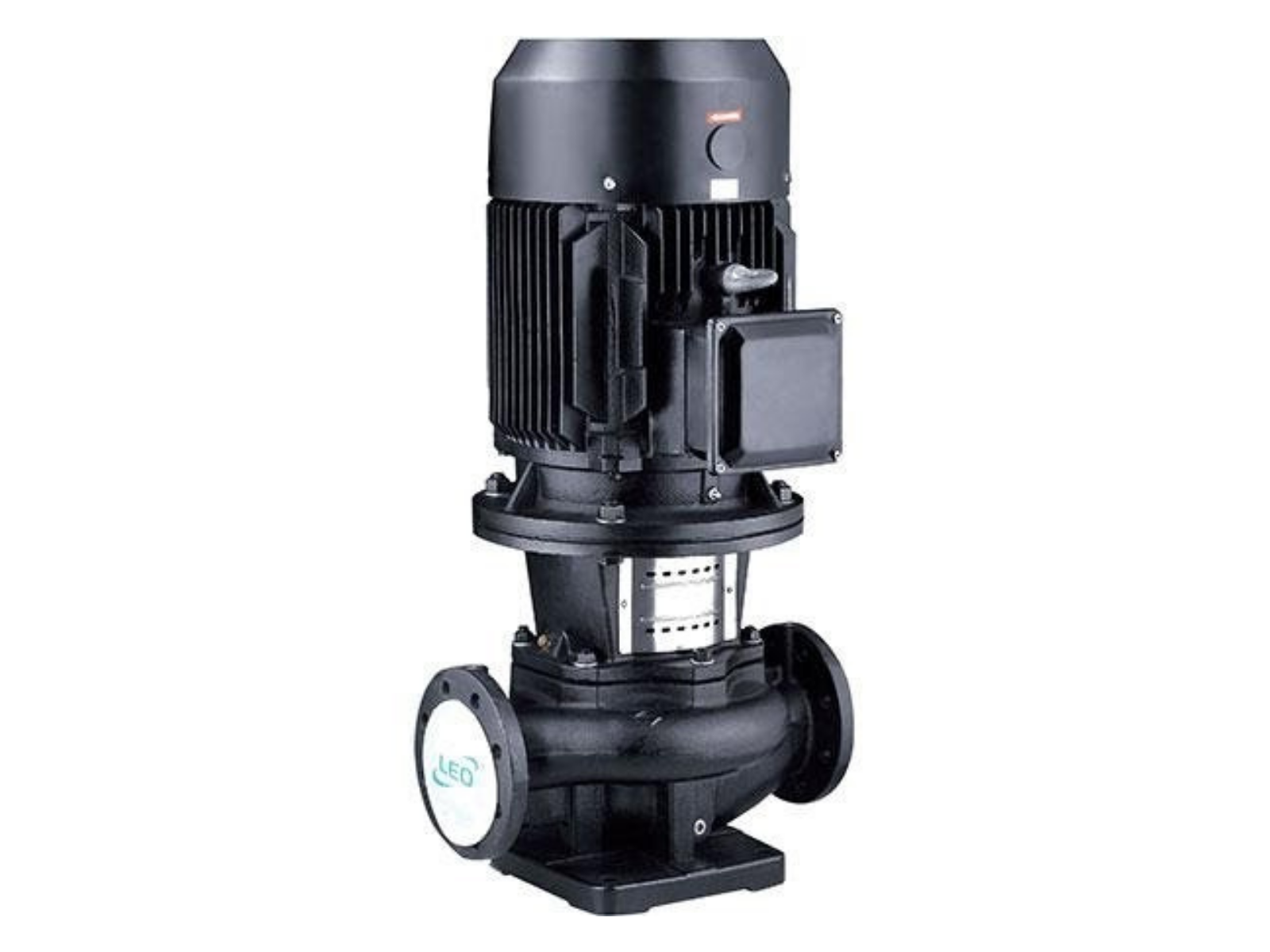

LPP (VERTICAL IN-LINE)

Operating Conditions:
  • Liquid temperature: +90⁰C
  • Flow ranges: Up to 760m3/hr
  • Liquid pH value: 4-10
  • Max. ambient temperature: +40 ⁰C
  • Max. Operation temperature: 85 m
  • Altitude: up to 1000m
  • Medium: Low viscosity, non-flammable and non-explosive liquids

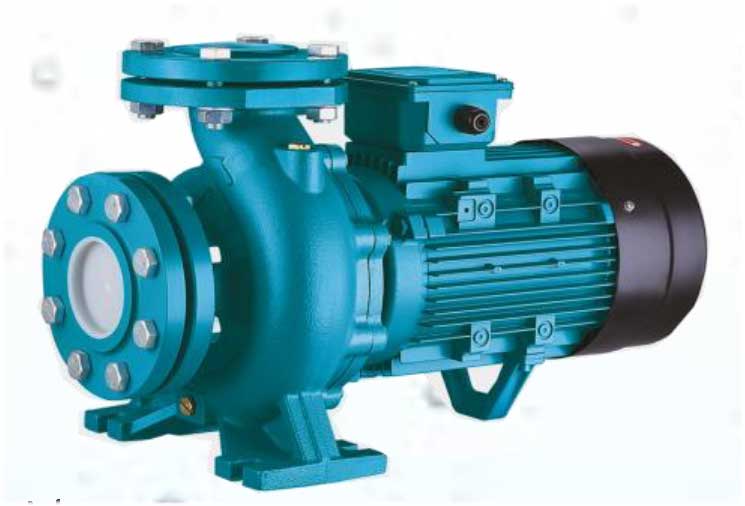

XST (STANDARD CENTRIFUGAL)

Operating Conditions:
  • Liquid temperature: -10⁰C TO 85⁰C
  • Flow ranges: Up to 220m3/hr
  • Liquid pH value: 4-10
  • Max. ambient temperature: +40 ⁰C
  • Max. Operation temperature: 95 m
  • Altitude: up to 1000m
  • Medium: Low viscosity, non-flammable and non-explosive liquids

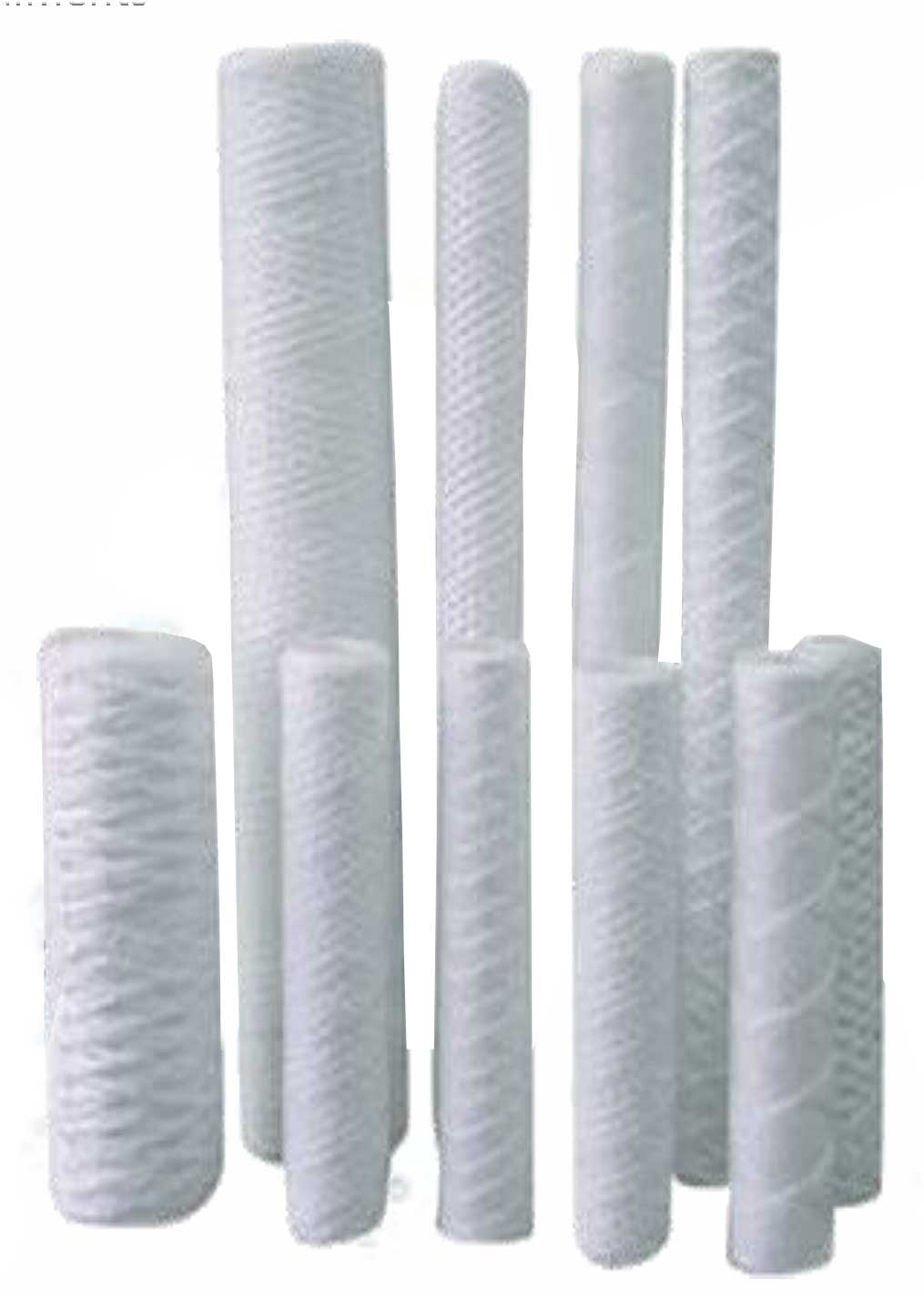

WOUND POLYPROPYLENE CARTRIDGES (SLIM)

BENEFITS:
  • Remove silt, rust, dust, particles, scale and other sediments
  • Large contact surface for minimum pressure drop
  • High retention capacity
  • High filtering efficiency
APPLICATIONS:
  • Suitable for low pressure applications
  • Pharmaceutical Industry
  • Food and drink Industry
  • Cosmetics Industry
  • Petrochemical Industry
  • Drinking water purification
PROPERTIES:
  • Filtering Media: Polypropylene
  • Core: Polypropylene
  • Length: 10’’,20’’,30’’ & 40’’
  • Maximum Operating temperature: 60 °C (140 °F)
  • Recommended Change out Pressure: 12 psi at 25 °C
  • Maximum Differential Pressure: 20 psi at 25 °C
  • Packaging: Plastic
Model Length Micron Inner Dia Outer Dia
PW10S01 10’’ 1 28mm 63 mm
PW10S05 10’’ 5 28mm 63 mm
PW10S01 10’’ 1 28mm 63 mm
PW10S05 20’’ 1 28mm 63.5 mm
PW10S05 20’’ 5 28mm 63.5 mm
PW30S01 30’’ 1 28mm 63.5 mm
PW30S05 30’’ 5 28mm 63.5 mm
PW40S01 40’’ 1 28mm 63.5 mm
PW40S05 40’’ 5 28mm 63.5 mm

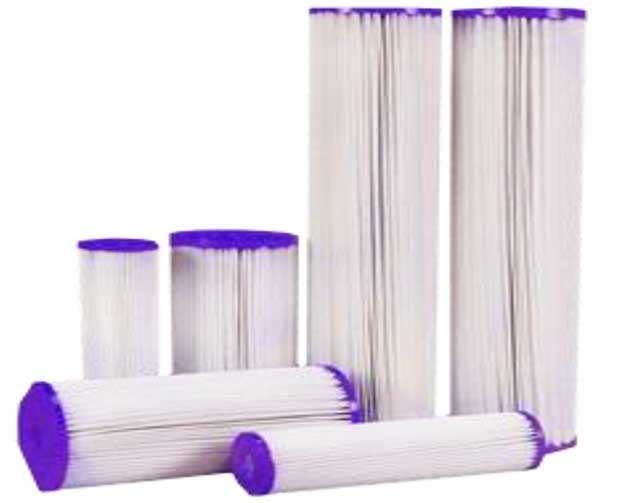

BENEFITS:
  • Remove silt, rust, dust, particles, scale and other sediments
  • Large contact surface for minimum pressure drop
Model Length Micron Inner Dia Outer Dia
PL10J35 10’’ 35 28mm 110 mm
PL20J35 20’’ 35 28mm 110 mm

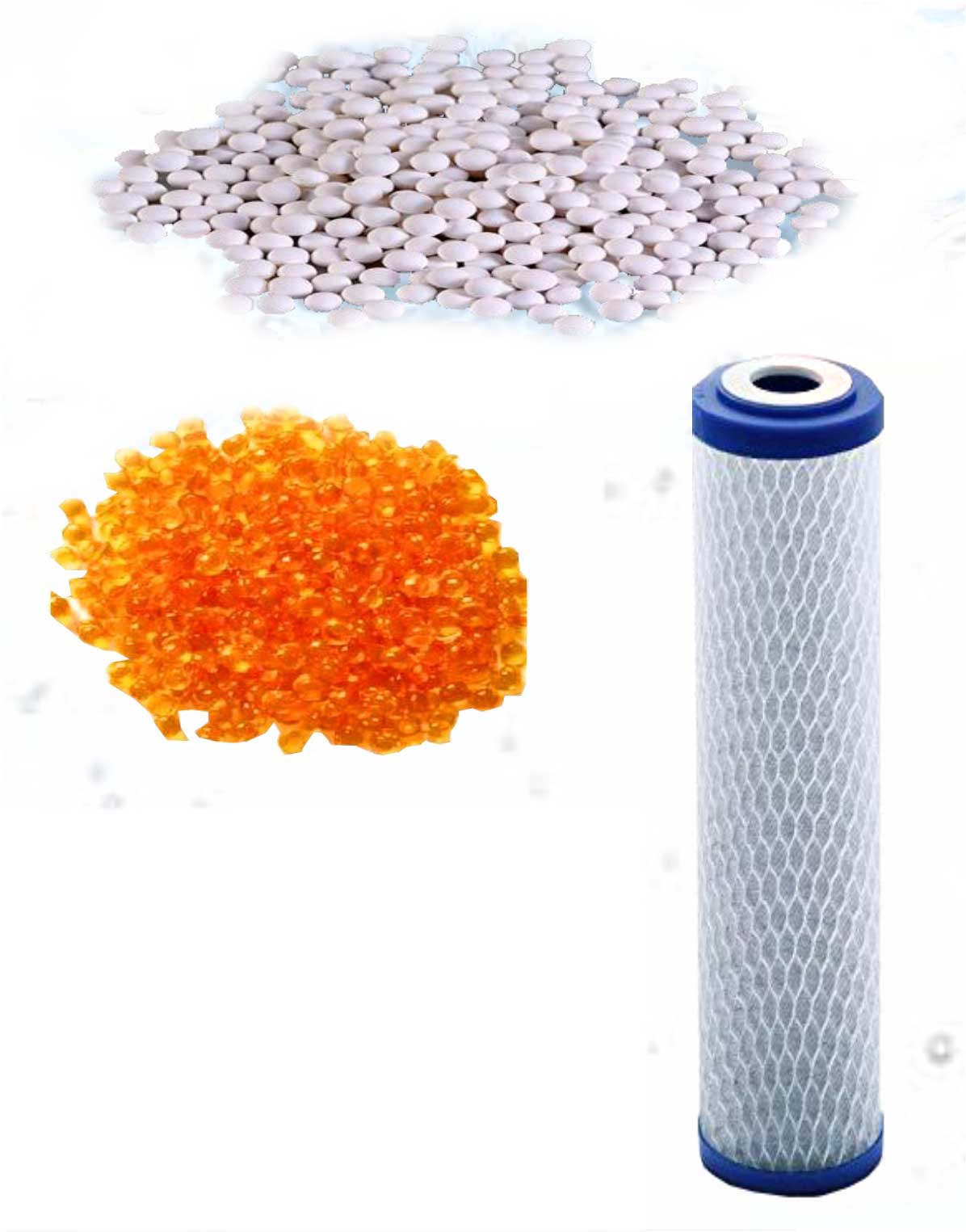

MEDIA CARTRIDGES

GRANULAR ACTIVATED CARTRIDGES

BENEFITS:
  • Removes bad taste, odours and chlorine.
  • Nylon mesh increases the life of a filter.
  • Buna-N gaskets ensures 99.99% purity.
APPLICATIONS:
  • Pharmaceutical Industry.
  • Food and drink Industry.
  • Cosmetics Industry.
  • Petrochemical Industry.
  • Reverse Osmosis water pre-treatment.
PROPERTIES:
  • Media: Granular Activated Carbon.
  • Length: 10’’,20’’,30’’ & 40’’.
  • Temperature: 60 °C (140 ° F).
  • Gasket: Buna-N (top and bottom).
  • Outer casing: Polypropylene with Nylon mesh.
  • End caps: Polystyrene.
  • Post filters: Spun Polypropylene 5 micron.
NOTE: Other media cartridges are also available upon request including cation cartridge, anion cartridge, KDF cartridges and activated alumina cartridge.
Model Length Micron Inner Dia Outer Dia
GAC10 10’’ 5 28mm 67 mm
GAC 20 20’’ 5 28mm 67 mm
GAC 30 30’’ 5 28mm 67 mm

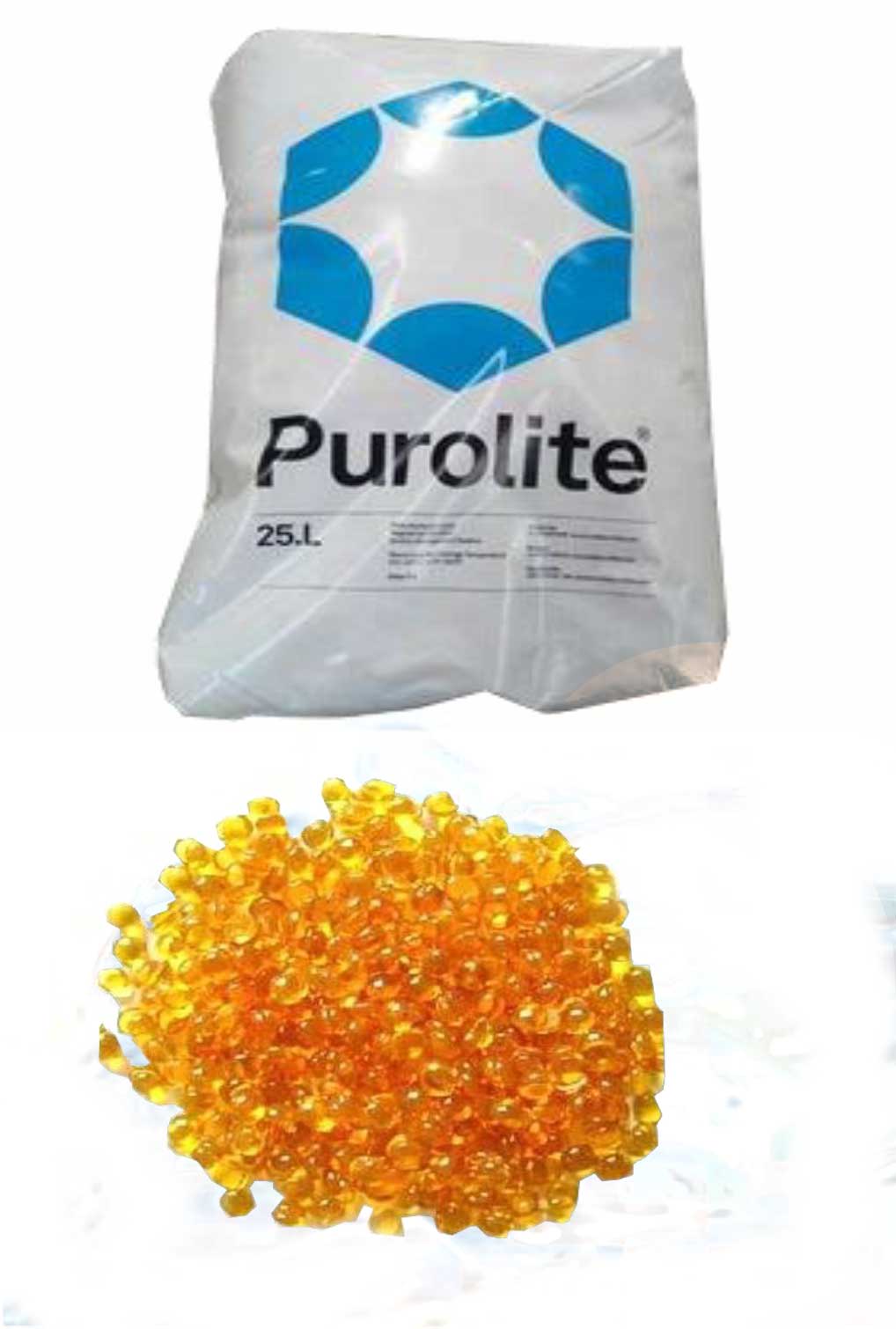

APPLICATIONS:
  • Deionization (Regeneration with acid)
  • Water softening for boiler and cooling towers
BENEFITS:
  • High operating capacity
  • Good Kinetic performance
  • Excellent chemical and physical stability
PROPERTIES:
  • Polymer Structure: Gel polystyrene crosslinked with divinylbenzene
  • Appearance: Spherical beads
  • Functional Group: Sulfonic acid
  • Ionic form: Na+
  • Total Capacity: 2 eq/ L (47.3 Kgr/ft3)
  • Moisture Retention: 44-48% (Na+form)
  • Particle Size Range: 300-1200 µm
  • 300 µm (max.): 1 %
  • Specific Gravity: 1.29
  • Temperature Limit: 120⁰C
  • Packaging: 25 Litre

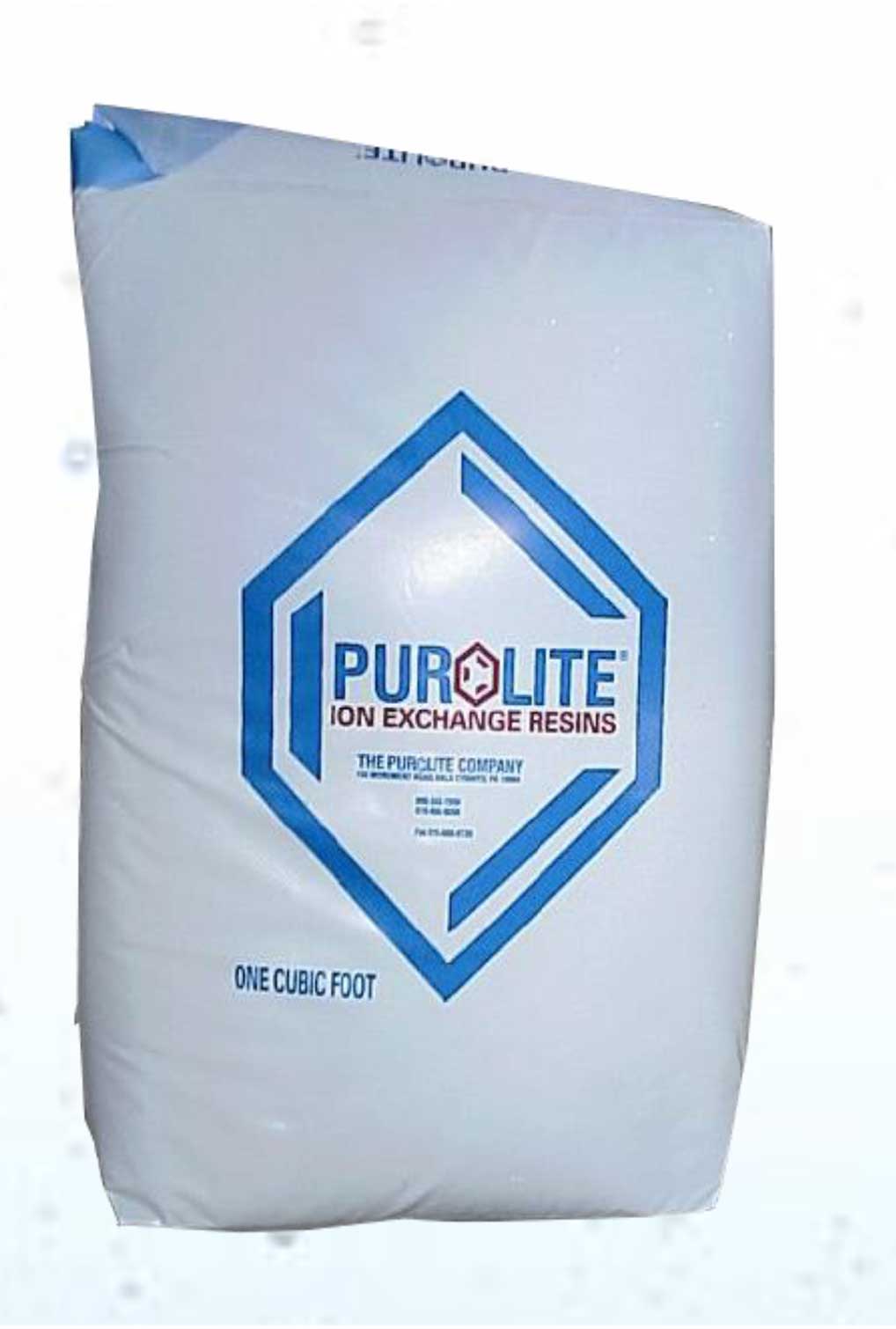

A 400 PUROLITE (RESINS)

APPLICATIONS:
  • Deionization (Regeneration)
  • Silica removal (mixed bed)
BENEFITS:
  • High operating capacity
  • Good Kinetic performance
  • Good Kinetic performance
PROPERTIES:
  • Polymer Structure: Gel polystyrene crosslinked with divinylbenzene
  • Appearance: Spherical beads
  • Functional Group: Type 1 Quaternary Ammonium
  • Ionic form: Cl-
  • Total Capacity: 1.30 eq/ L (28.38 Kgr/ft3)
  • Moisture Retention: 48-54% (Clform)
  • Particle Size Range: 0.60-0.85 mm
  • Specific Gravity: 1.08
  • Temperature Limit: 100⁰C
  • Packaging: 25 Litre
