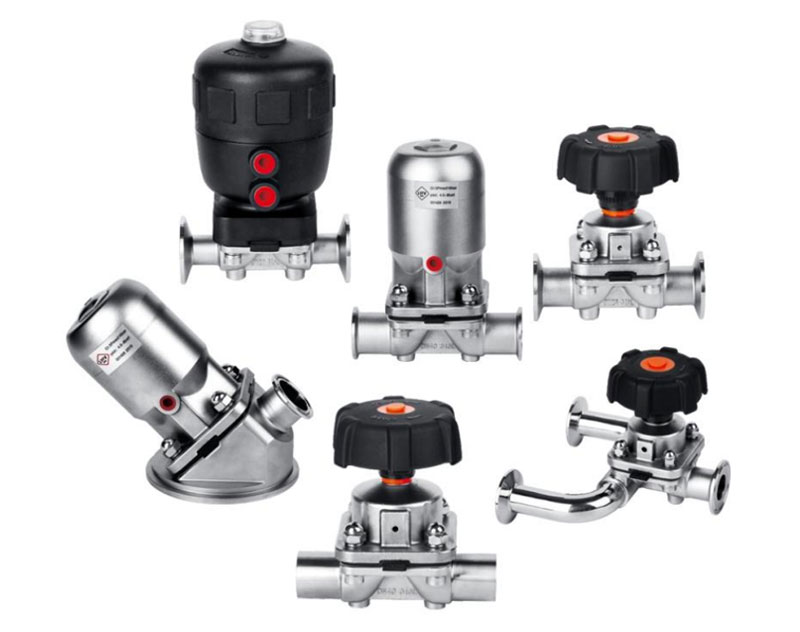

Diaphragm Valve

• Connection form: Welded and Ferrule type
• Nominal diameter: DN15- -DN 75(mm).
• Applicable media: PW, WFI, Pure Steam and other high purity water.
• Applicable temperature: Maximum 110 degree centigrade for PTFE+EPDM Seal.
• Valve material: SS316L.
• Application: Dairy, pharmaceutical, food, beverage, chemical, water treatment.
• Standard: ISO, 3A and ASME.

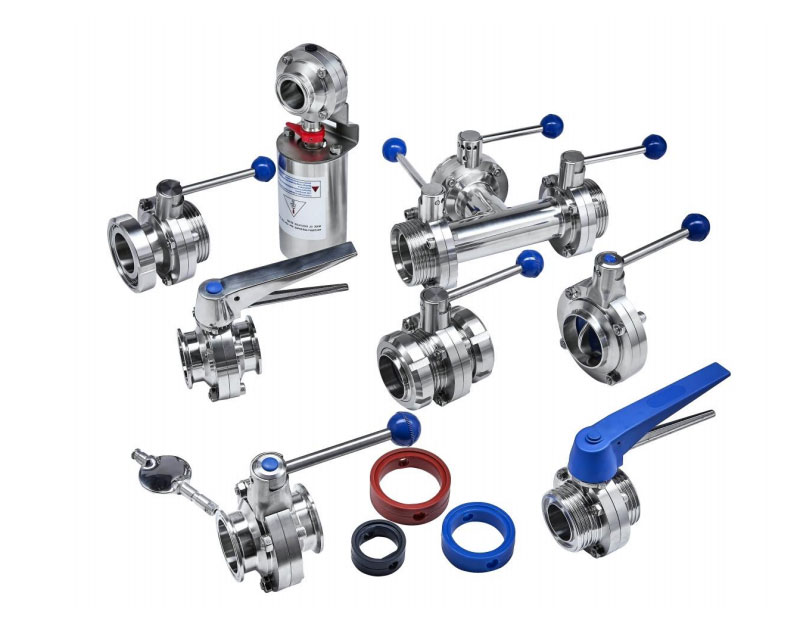

Butterfly Valve

• Technical specification: 1/2*- 12″, DN10-DN300
• Material: 304/316L.
• Pressure: 10bar.
• Temperature: 130°C.
• Connection: welded, threaded, clamped, flanged.
• Implementation standards: DIN, SMS, ISO, IDF, RJT, DS.

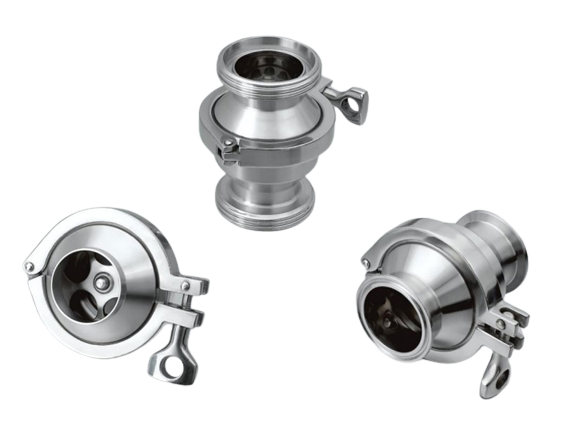

Check Valve

• Connection form: thread type, welding type, quick loading type, flange type.
• Nominal diameter: DN15- -DN 100(mm).
• Applicable media: all kinds of high corrosive chemical media.
• Pressure range: 1.6Mpa.
• Applicable temperature: normal temperature.
• Valve material: SUS304, SUS316L.
• Drive: hydraulic control.
• Application: Dairy, pharmaceutical, food, beverage, beer, chemical, water treatment.
• Standard: ISO, DIN, IDF, SMS, 3A.
• Pipe flow control: DN25- DN150 and 1″- 6″, applied to stainless steel piping system.
• Working principle: Check valve is used in stainless steel piping system to prevent fluid purpose of reflux.

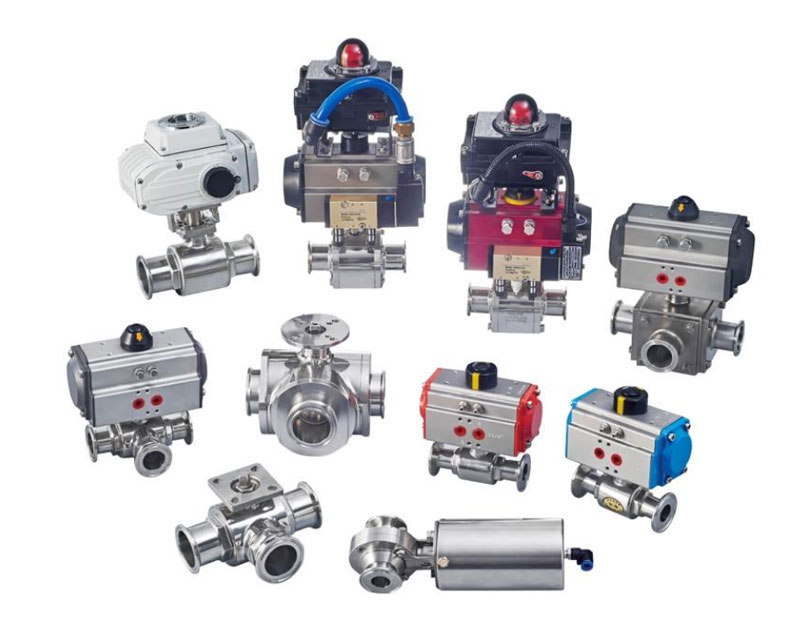

Ball Valve

• with FDA requirements for quality control.
• Driving mode: manual, pneumatic, electric..

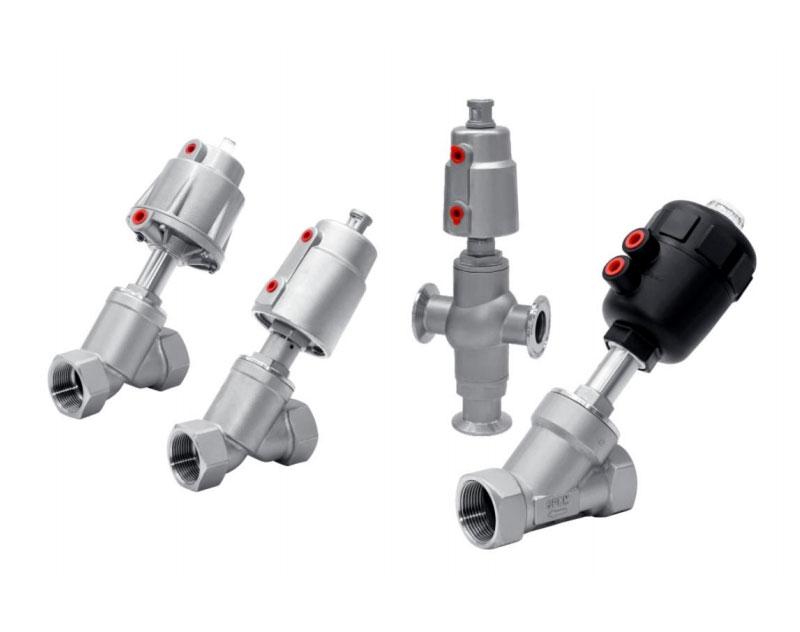

Angle Seat Valve

• Save Space
• Responsive
  Accurate Action
• Long Service Life
• Large Flow
• Small Flow Resistance and So On

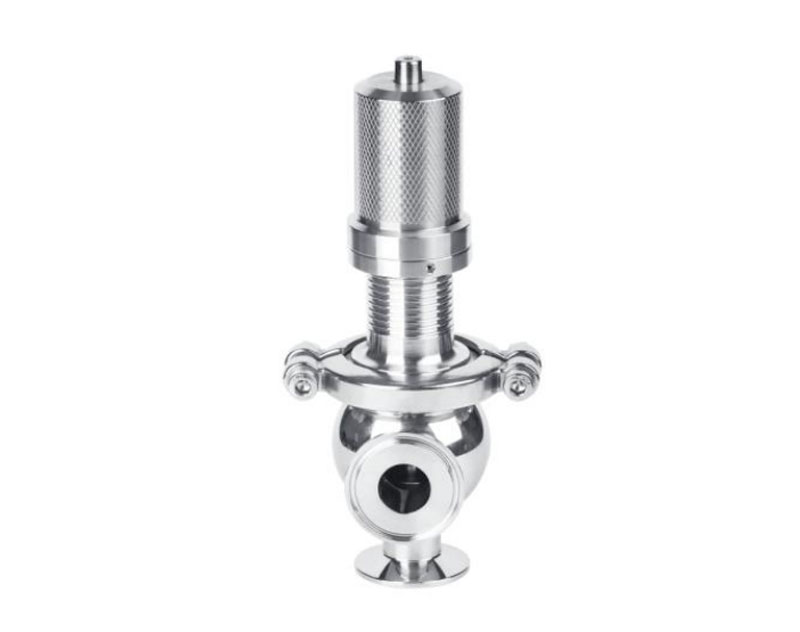

Safety Valve

• Sanitary safety valve.
• Installed in the pressure discharge loop, the pipeline, pump, device, storage tank and so on.
• Used in food, beverage, dairy, pharmaceutical, beer and other industries.

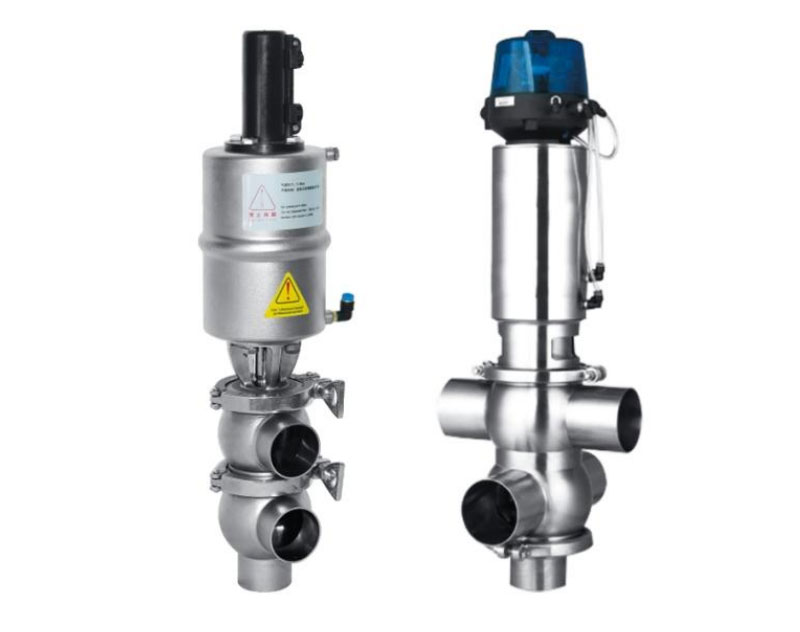

Seat Valve

• Special anti-” suction “seal design.
• In food processing industry, beverage production and fine chemical industry.
• Seat valve series: sanitary seat valve, sterile seat valve, high pressure seat valve.

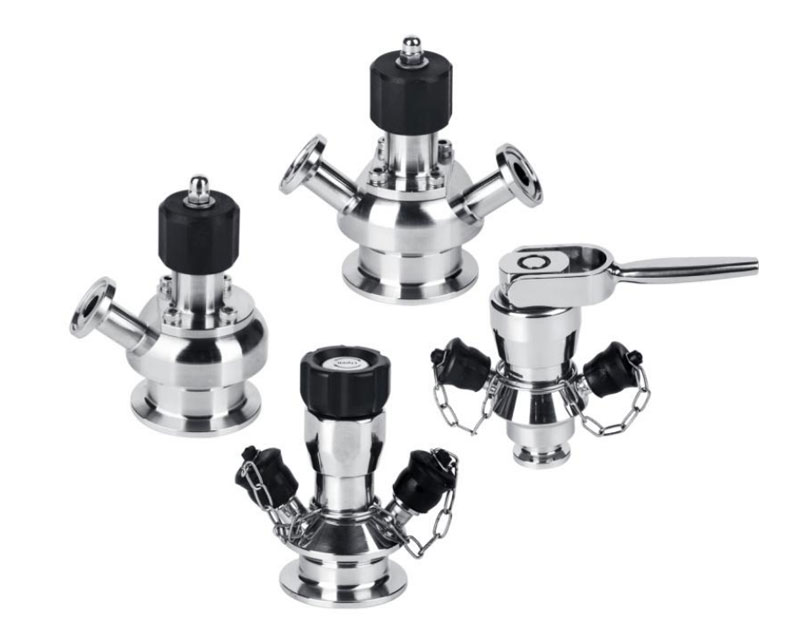

Sampling Valve

• Completely no dead Angle, sterilization thoroughly.
• Steam or alcohol can be used for in situ disinfection.
• Material is sealed by diaphragm directly.
• Typical sampling, good repeatability.
• Put an end to secondary pollution, large sampling, trace sampling can be.

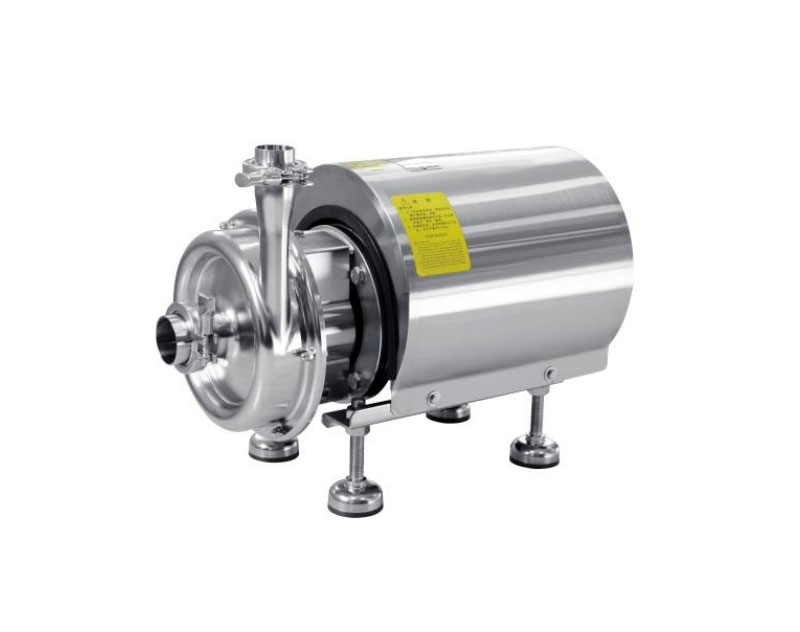

Centrifugal Pump

• Sanitary centrifugal pump in the form of single stage, single suction, open impeller.
• Pump shell impeller by careful design.
• Reduce the resistance.
• Completely eliminate the sanitary dead Angle.
