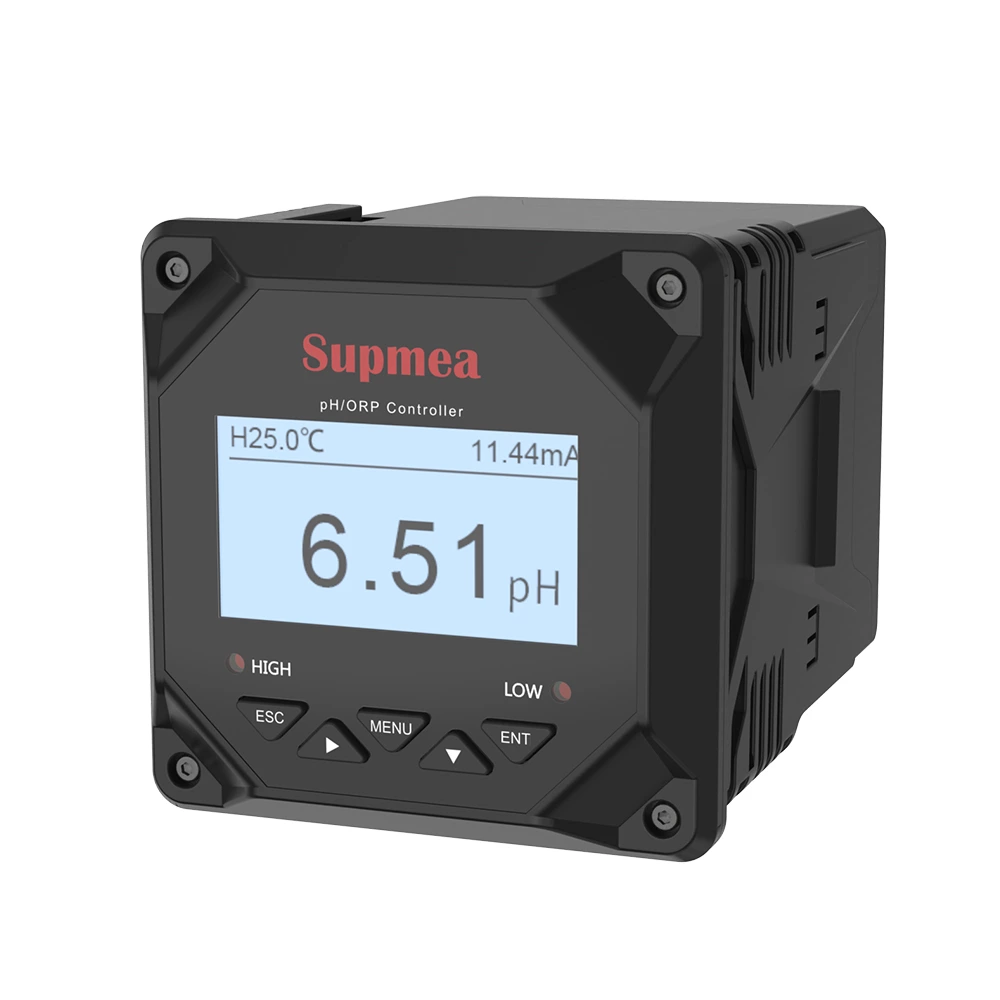

SUP-PH6.5 pH ORP meter

SUP-PH6.5 industrial pH meter is an online pH analyzer which applied in chemical industry metallurgy, environment protection, food, agriculture and so on. With 4-20mA analog signal, RS-485 digital signal and relay output. Can be used for industrial processes and water treatment processes pH control, and support remote data transmission, etc.

Characteristics

  • Measure range: pH: 0-14 pH, ±0.02pH; ORP: -1000 ~1000mV, ±1mV
  • Input Resistance: ≥1012Ω
  • Power supply:  220V±10%，50Hz/60Hz
  • Output: 4-20mA, RS485, Modbus-RTU, Relay

  • Specifications

Parameters Details
Screen size 2.8 inch monochrome LCD with a resolution of 128×64
Overall dimension PH6.5: 100mm×100mm×150mm
PH6.8: 100mm×100mm×150.5mm
Cutout dimension 92.5mm×92.5mm
Weight 0.58kg
Ingress protection IP5X
Measure variables pH / ORP
Measure range pH: (0.00 ~ 14.00) pH
ORP: (-2000 ~ 2000) mV
Accuracy pH: ±0.02 pH
ORP: (-2000 ~ -1000) mV ±2mV;
(-1000 ~ 1000) mV ±1mV;
(1000 ~ 2000) mV ±2mV
Input resistance ≥10¹² Ω
Temperature compensation NTC10K: (-10~60)℃ Accuracy ±0.3℃; (60~130)℃ ±2℃
Pt1000 / Pt100 (Customized): Accuracy ±0.3℃
Range: (-10~130)℃ manual/automatic
Output (4~20) mA output, max loop 750Ω, ±0.2%FS
RS485 output Isolated, Modbus-RTU RS485
Relay 2 channels, Pickup/Breakaway AC250V/3A
Relative humidity 10%~85% (No condensation)
Working temperature (0~60)℃
Power supply AC: 220V±10%, 50/60Hz; 110V±10%
DC: 24V±10%, input power ≤6W
Storage conditions Temperature: (-15~65)℃
Relative humidity: 5%~95% (No condensation)
Altitude: <2000m
