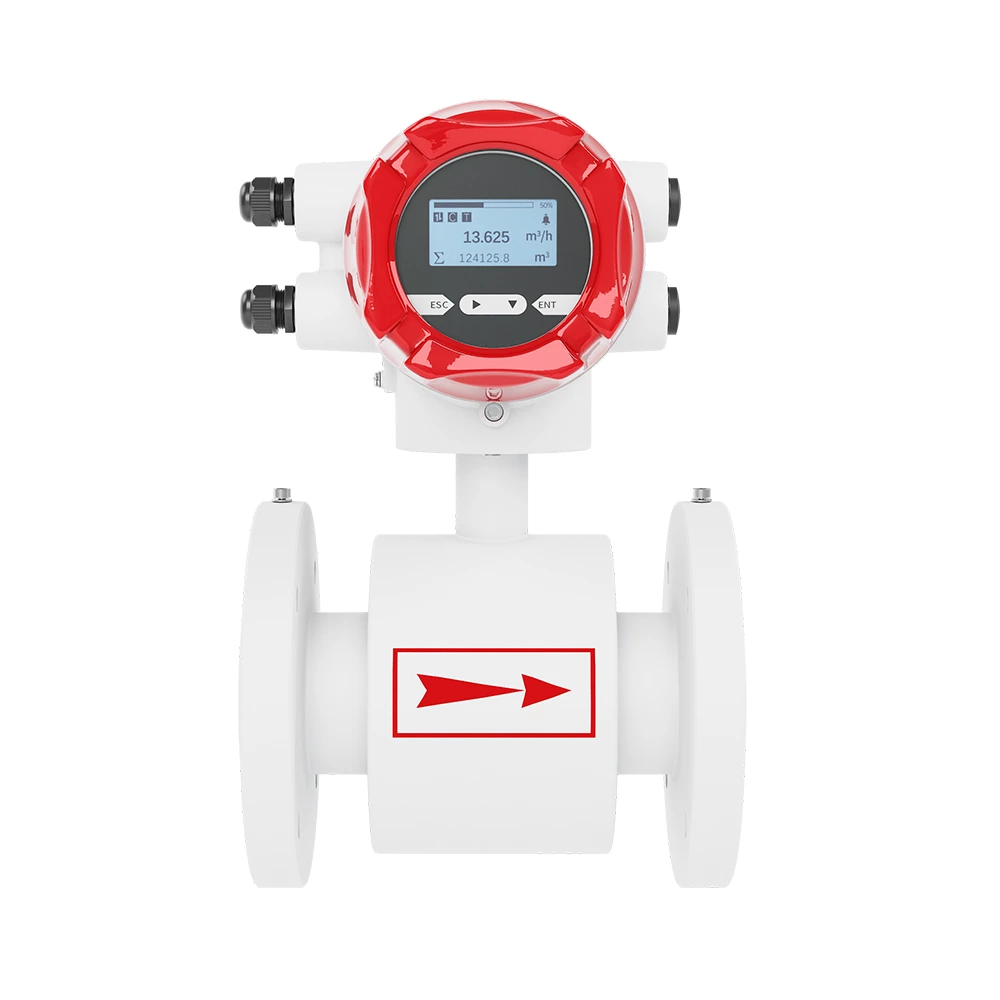

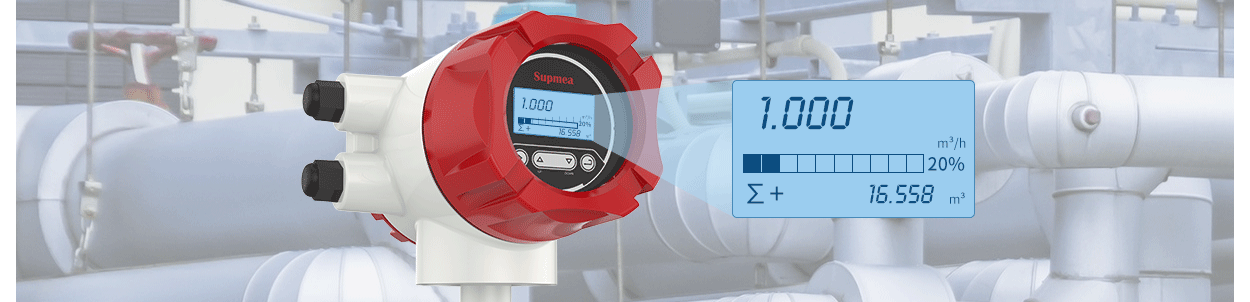

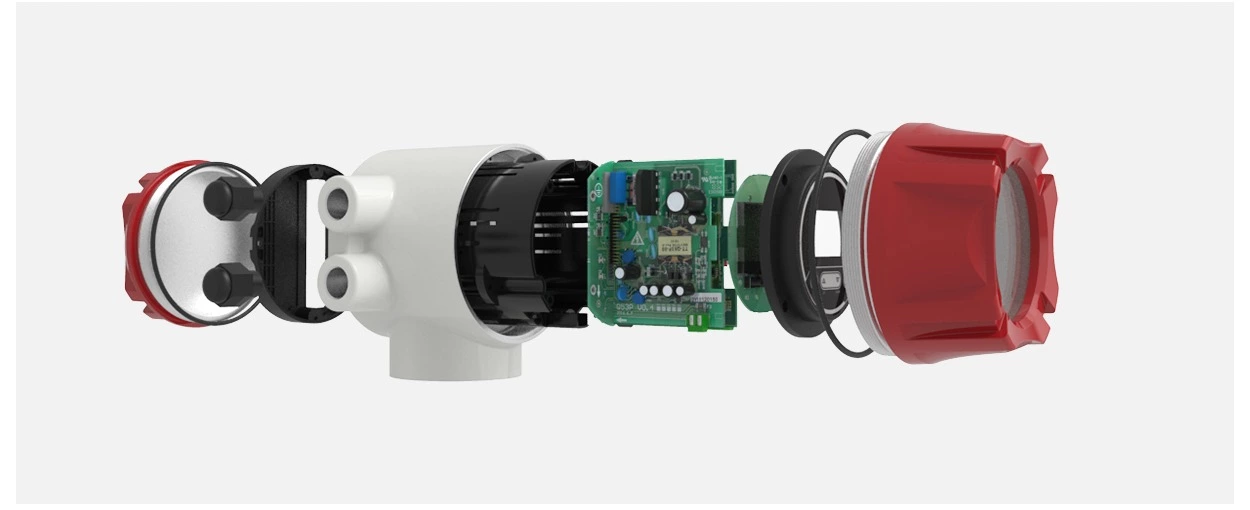

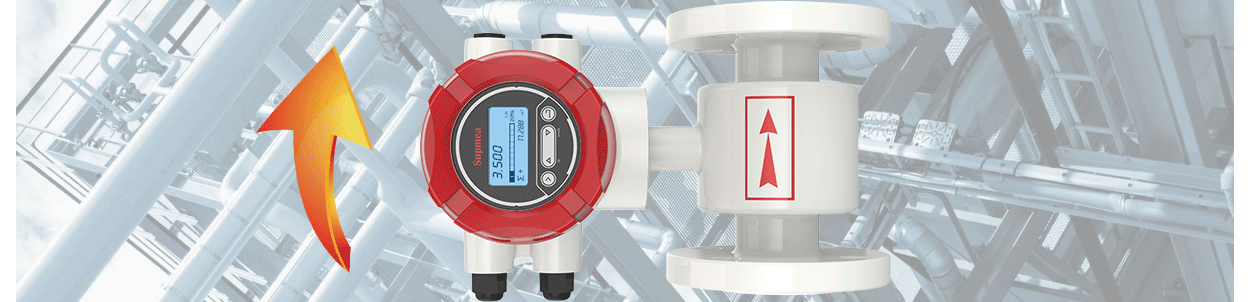

SUP-LDG-A100 electromagnetic flowmeter

The electromagnetic flowmeter is designed based on the Faraday electromagnetic induction principle and is used to directly measure the flow rate of conductive liquids in closed pipelines.

Characteristics

  • Pipe diameter: DN10~DN1000
  • Accuracy: ±0.5% of measured value; ±0.3% of measured value (available for selected pipe sizes)
  • Repetitiveness: 0.16%
  • Electric conductivity:  ≥50μS/cm

  • Specifications

Measured variableDirect measured: Flow velocity
Calculated value: Volume flow, mass flow.
Flow velocity rangeTypically range of flow velocity: 0.5m/s~5m/s
Nominal diameterDN10~DN1000
CommunicationsRS485; MODBUS-RTU; Hart communication (optional)
Relay (Remote type optional )2 channels SPST; 250VAC; 3A
Supply voltage100VAC~240VAC, 50/60Hz; 20VDC~28VDC
Power consumption≤15W
Reference operating conditionsMedium: water Temperature: 20℃ Pressure: 0.1MPa Installation requirements: Inlet run≥10DN, Outlet run≥5DN
Accuracy±0.5% of measured value; ±0.3% of measured value (available for selected pipe sizes) Note: Applicable to flow velocity range of 0.5 m/s to 5 m/s
Repetitiveness0.16%
Medium temperature rangeCR liner: -10℃~70℃ PU liner: -10℃~60℃ PTFE/F46 liner-10℃~120℃
Rated pressure (Customizable for high-pressure applications)DN10~DN250: PN<1.6MPa DN300~DN1000: PN<1.0MPa Note: For certain specifications, actual values may vary; refer to the nameplate for exact information. High-pressure versions are available upon request.
Conductivity≥50μS/cm
Ambient temperatureIntegrated type-10℃~55℃
Remote typeConverter:-20℃~55℃ Sensor: -10℃~55℃
Storage temperature-20℃~55℃
Protection levelIntegrated typeStandard: IP65
High protection: IP66/IP67
Remote typeSensor: IP65 Converter: IP68
