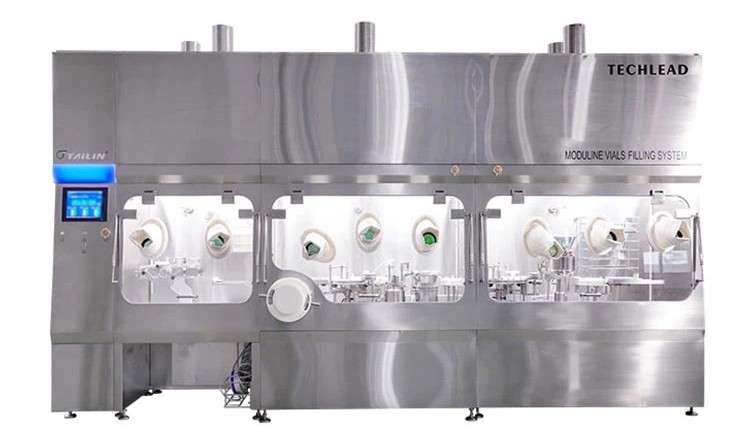

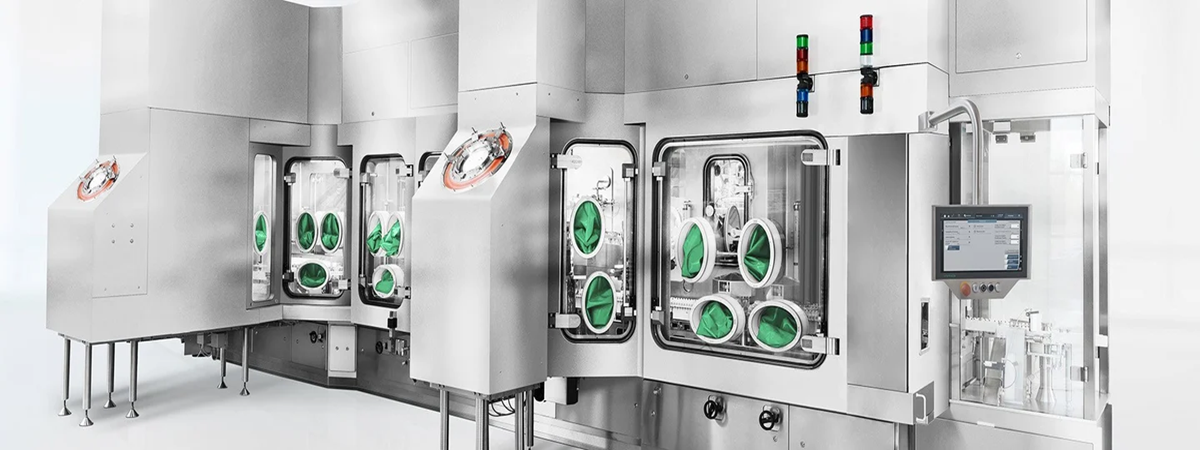

Automatic Aseptic Filling Line lsolator

Aseptic Filling lines enclosed in an isolation technology are widely utilized for the aseptic manufacture of sterile pharmaceuticals in various container formats.

Reduce human intervention to guarantee asepsis and containment.

Customized and modular design.

Automatic Aseptic Filling Line Isolator equipped with world-class filling line.

Product Features

  1. Class A, ISO5: Aseptic environment ensuring contamination-free operation.
  2. Integrated VHPS® Decontamination System: Provides effective bio-decontamination for aseptic processing.
  3. Special Liquid Transfer Technology: Enables continuous and aseptic filling.
  4. Real-time Monitoring: Tracks velocity, differential pressure, humidity, and temperature in real time.
  5. Adjustable Temperature: Temperature can be adjusted to minimize the influence on products.
  6. Data Storage: Critical process parameters can be stored and printed.
  7. Power Supply: AC 380V / 50Hz.
  8. Control System: Siemens PLC control with HMI for reliable automation.
  9. Leakage Rate: Less than 0.5% /vol/hour under 2 times working pressure.
  10. LED Lamp: Provides illumination of more than 300 Lux.

Options

Rapid Transfer Ports (RTP) technology for safe transfer
Particle counter
Air sampler
H2O2 high & low concentration sensors
H2O2 portable sensor for operator safety
WiFi controlled glove integrity tester (GIT-WLAN)
Wooden Mock-Up

Services

Complete validation protocols to comply with FDA, EMA, GMP, 21CFR Part 11
FAT, SAT, Training
